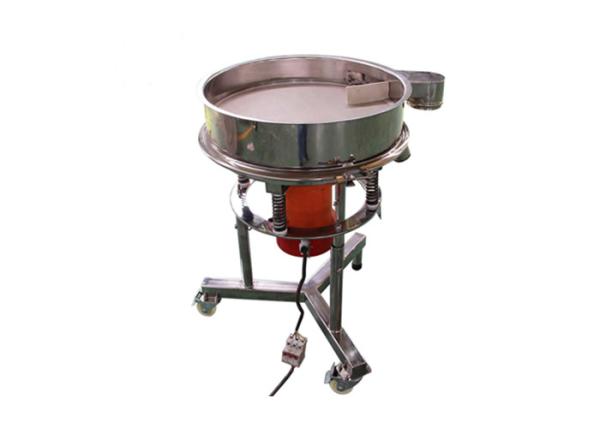

Introduction of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk has the characteristics of high efficiency, small amplitude, high screening frequency and low noise. Each high-frequency screen is equipped with a movable frame, which can be moved freely in the workplace, and the height can be adjusted without complicated installation, simple operation and easy damage.
More Information About Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application | ceramic glazes, powder coating, soybean milk, slurry etc. |
Working Principle of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
The high-frequency vibrating screen uses high-frequency vibration, so that the tension on the surface of the slurry cannot be preserved and destroyed. At the same time, the fine material also oscillates at a high speed, which speeds up the effect of high-density useful minerals and segregation, and increases the probability that the smaller-sized material will contact the sieve.
Features of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
1. The height of the high-frequency filter screen can be adjusted by itself, and the operation is simple and durable.
2. Small size, light weight, easy to move.
3. High sieving accuracy and wide application range, any powder, granule, slurry can be applied.
4. Low energy consumption and high efficiency. Compared with similar models, energy consumption is reduced by half while output can be doubled.
5. Stainless steel, beautiful appearance and strong corrosion resistance, does not change the material characteristics.
6. The effect of sieving fine particles and high viscosity materials is more obvious and the effect is better.
Moving Trajectory of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Technical Parameters of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
Diameter
(mm) | Power
(kw) | Effective Diameter of Mesh
(mm) | Exciting Force(kN) | Weight
(kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Application of Three Dimensional High Frequency Vibro Screen Machine for Soybean Milk:
The high frequency vibrating sieve is widely used in milk, sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil, poultry and seafood processors.
